Replace motors mechanism

In this document you will find a description how to replace the throw flaps motors system in the Smartb

You will need: a new set of motors mechanism a set of allen keys cross screwdriver trimmers cutters

Before replacing disconnect device from the power supply!

With practice, some points can be omitted, but the simplest path will be described here

---

Step 1 Remove metal cover with shape

Open door Unscrew metal cover

---

Step 2 Unscrew plastic flaps (optional)

this is just to have easier access to the motor plug and screw. Is not always necessary

---

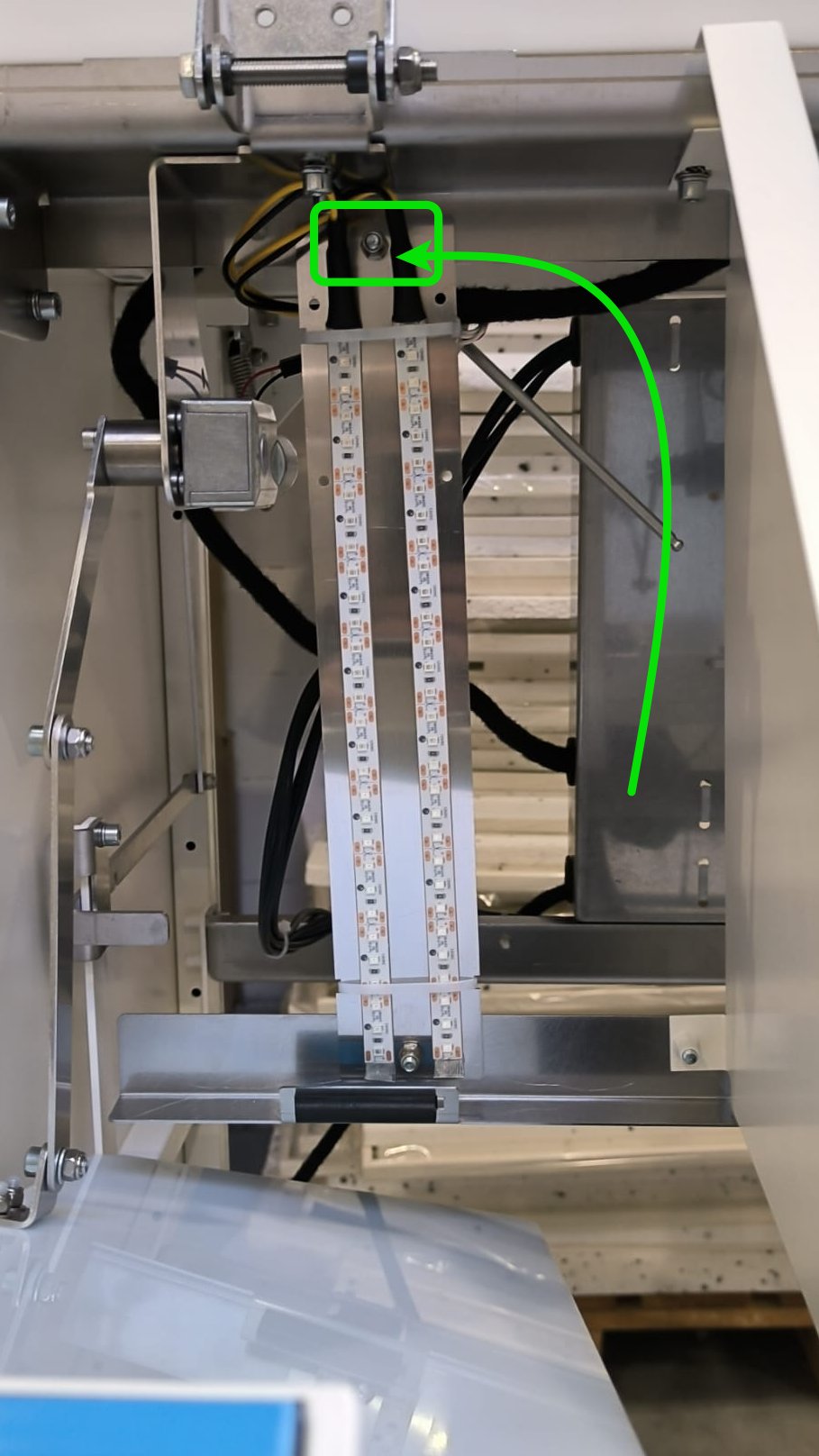

Step 3 Unscrew led holder (optional)

this is just to have easier access to the motor plug and screw. Is not always necessary

---

Step 4 Unplug motor cable

There are two bolt (for each load cell) form bottom (alen key 4)

---

Step 5 Set new sensor

Pay special attention to the direction! The beam has an arrow drawn on it. This arrow should point down and be on the opposite side of the mounting screws to the frame! (see photo below)
On the front of the device, the arrow should be on the left and on the back on the right.

first place the beams in their final positions screw the first one (closer to the front door) then the second one at the back similarly to the description (on the back it is on the other side)

---

Step 6 Secure cable and PCB with zippers

---

Step 7 Plug in a new sensor

---

Step 8 Screw flor again

The floor is not symmetrical! Orient it similarly to the others!

---

Step 9 Wieght calibration

Full calibration is required after load cell replacement. THIS IS A DIFFERENT CALIBRATION THAN ZERO CALIBRATION FROM THE MENU. Right now there is no possible full calibration from user menu.

Calibration consists of 4 stages
1. empty beam
2. load placed at the back
3. load placed in the middle
4. load placed at the front
