Replace motors mechanism Smartb

In this document you will find a description how to replace the throw flaps motors system in the Smartb

You will need:

• a new set of motors mechanism
• a set of allen keys
• cross screwdriver

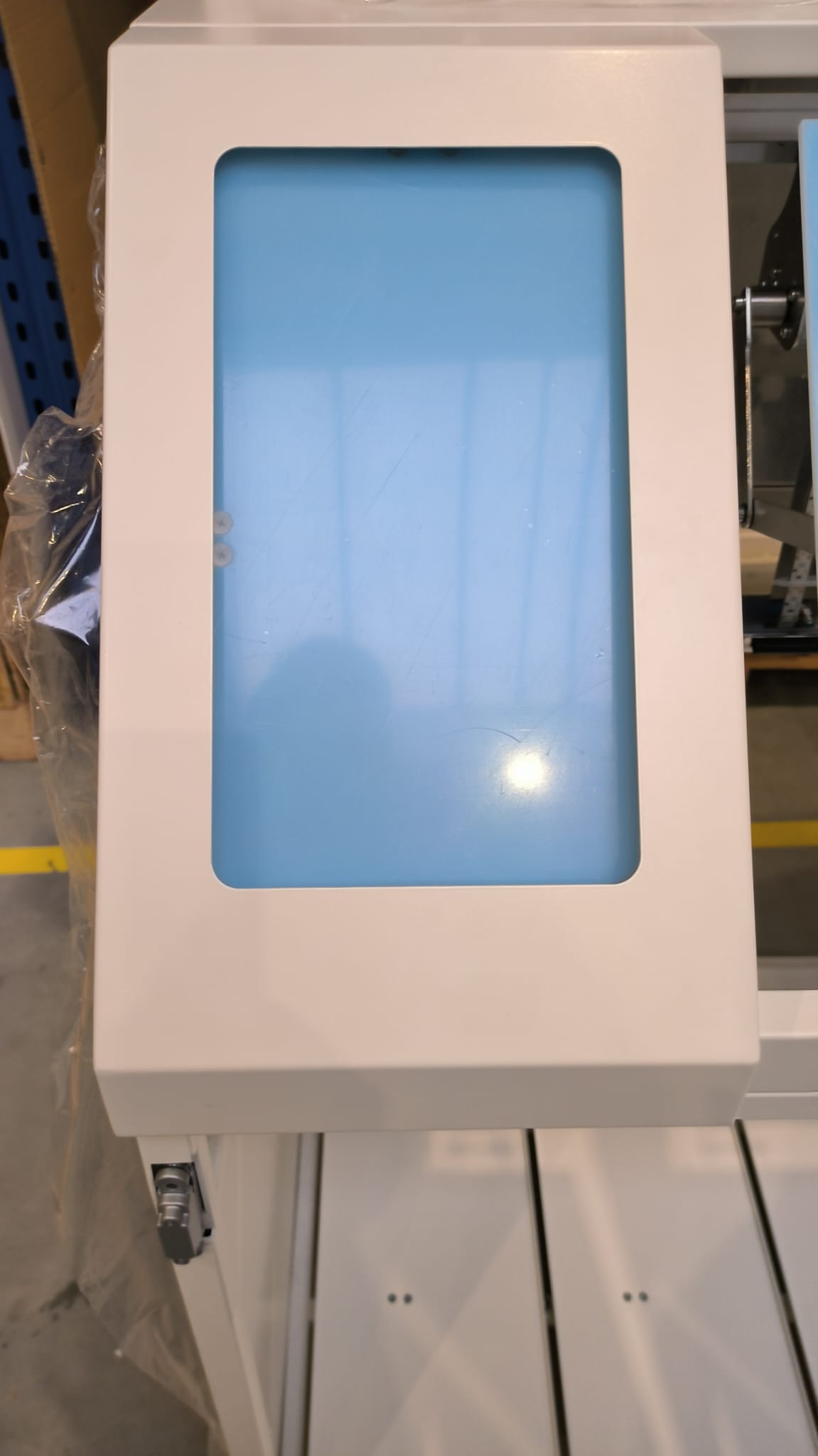

• Open door

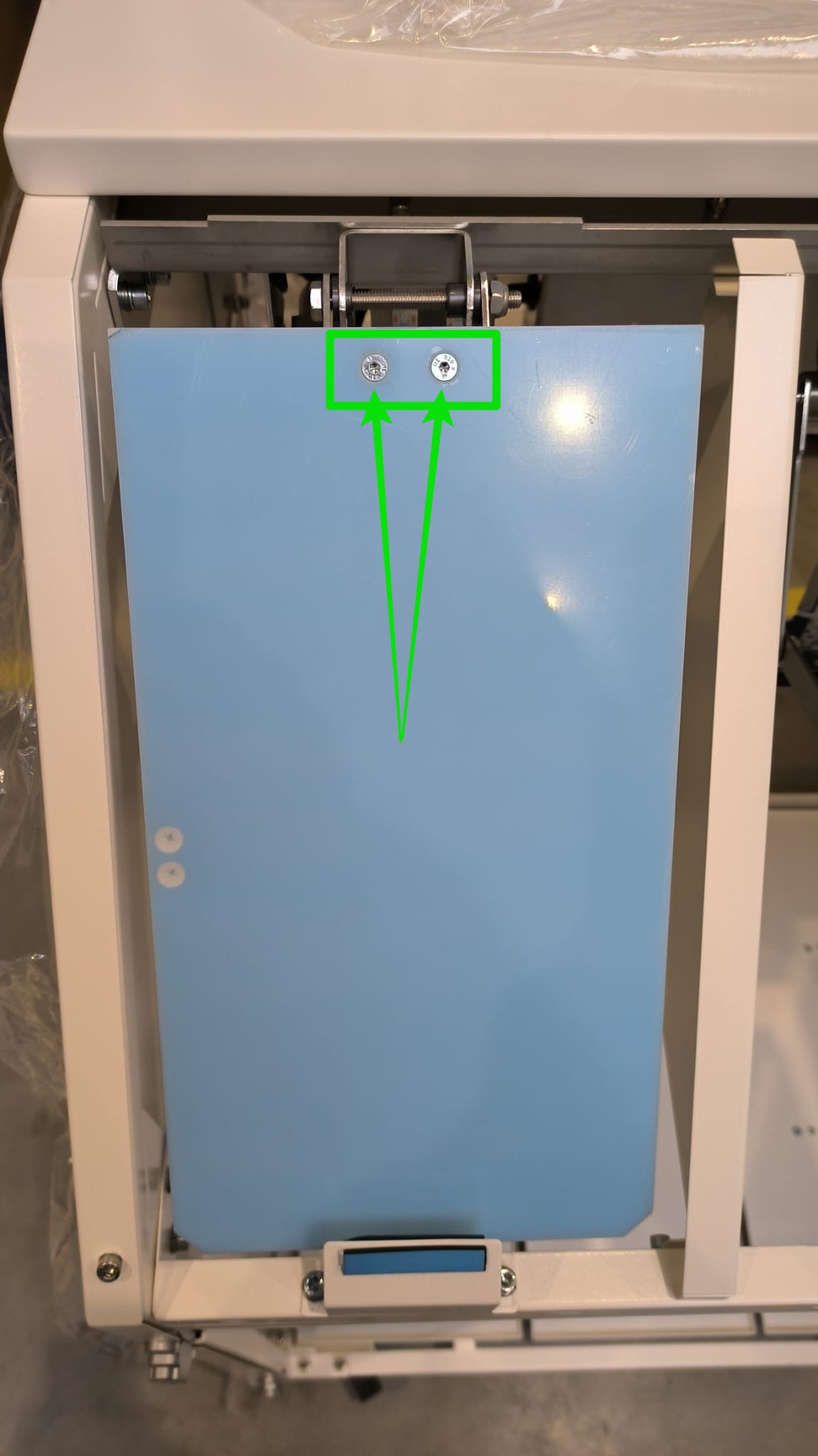

• Unscrew metal cover

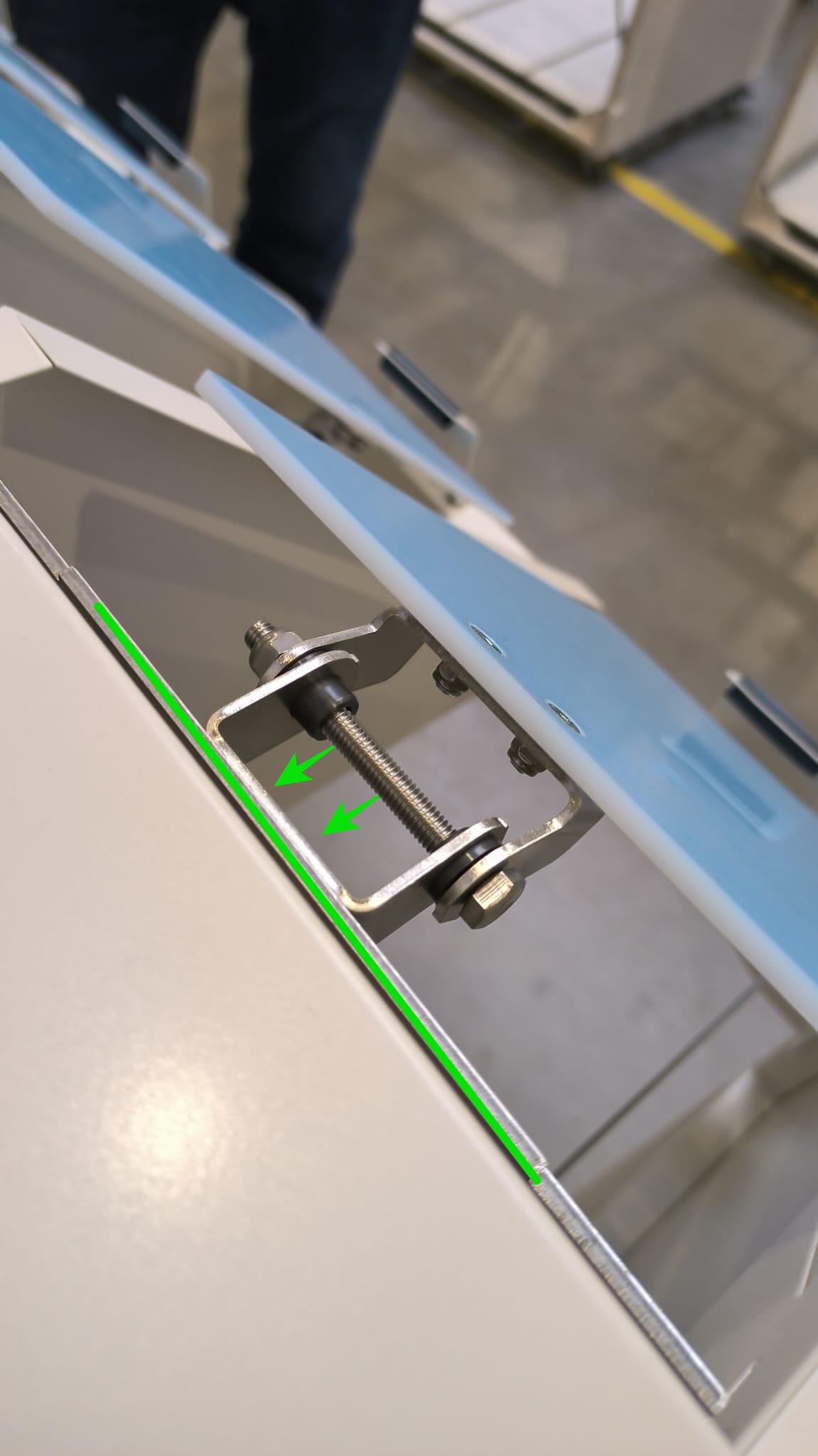

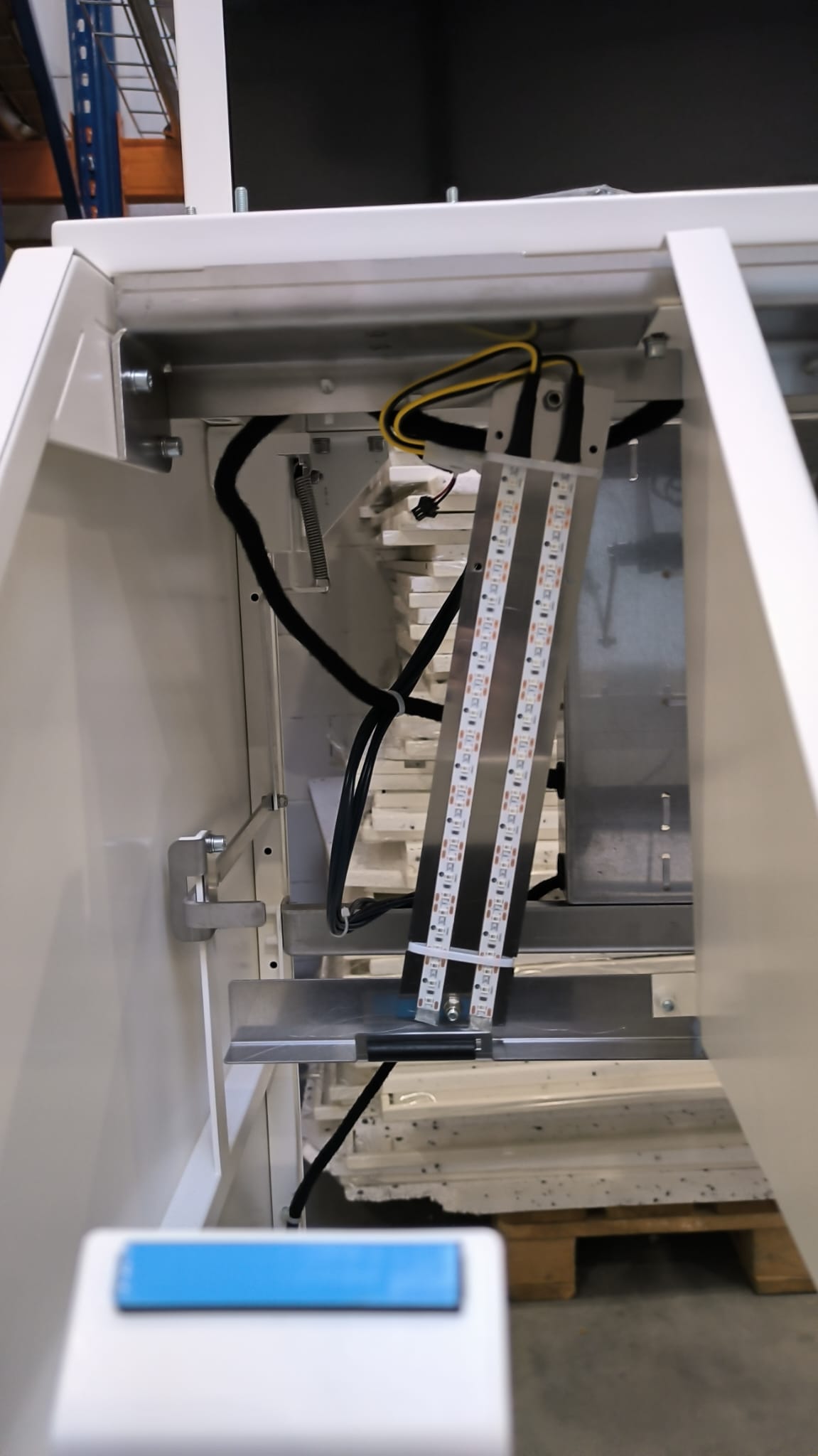

• this is just to have easier access to the motor plug and screw. Is not always necessary

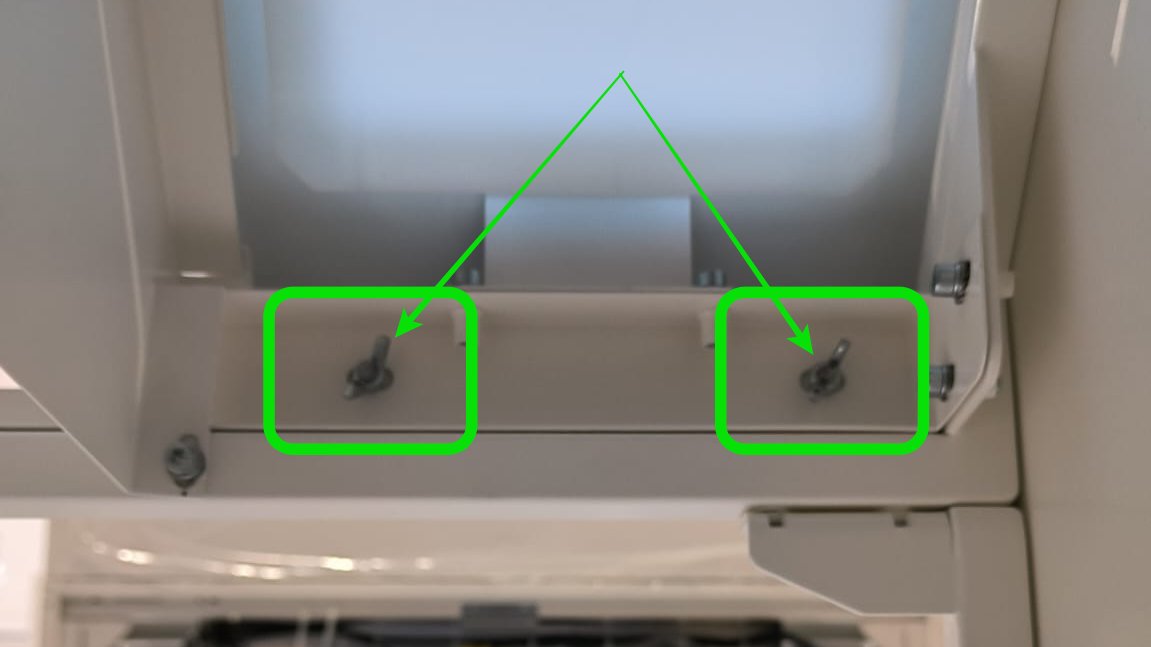

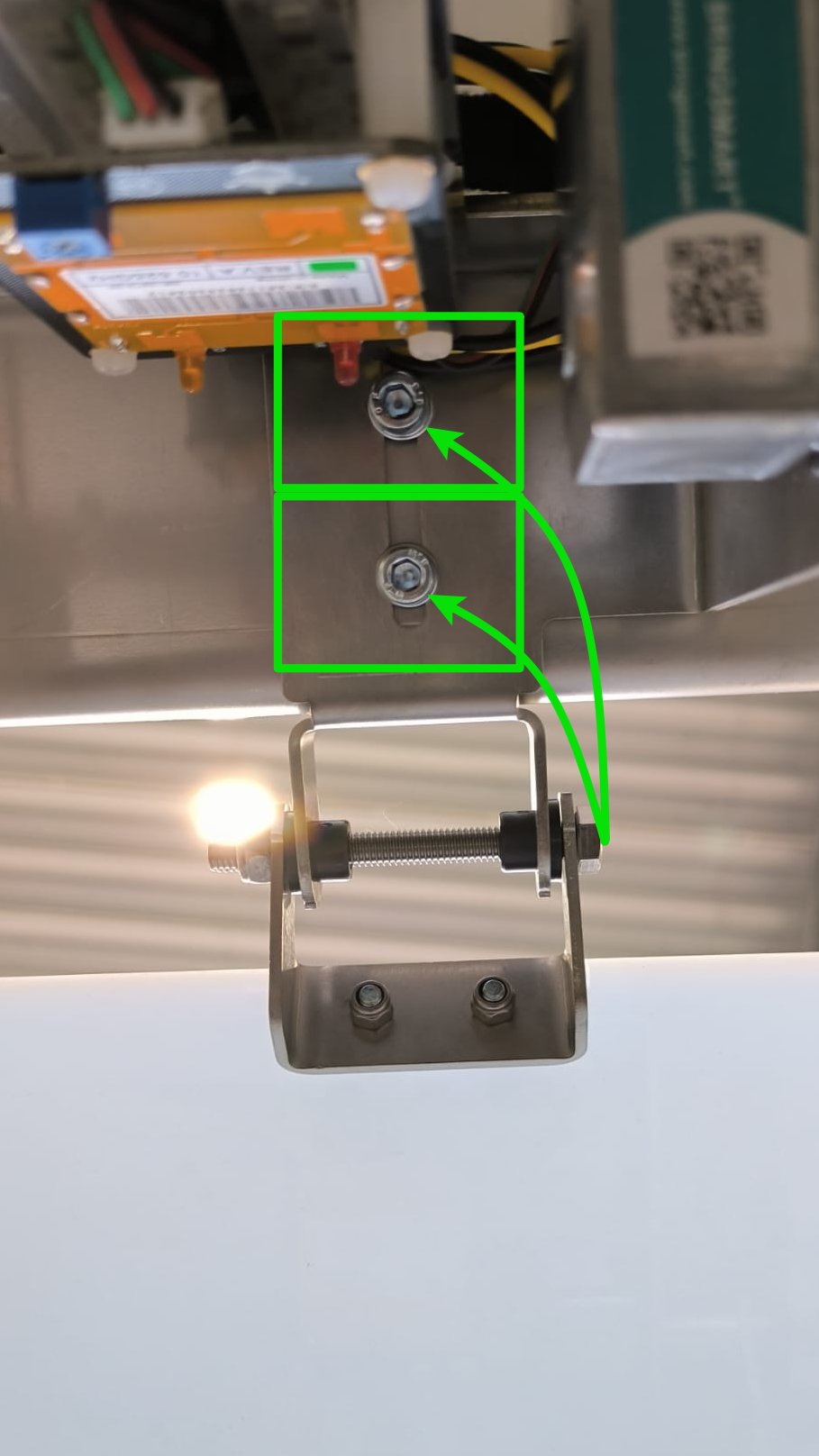

• Depending on the hardware version, may be blind rivet nuts or a separate nut

• this is just to have easier access to the motor plug and screw. Is not always necessary

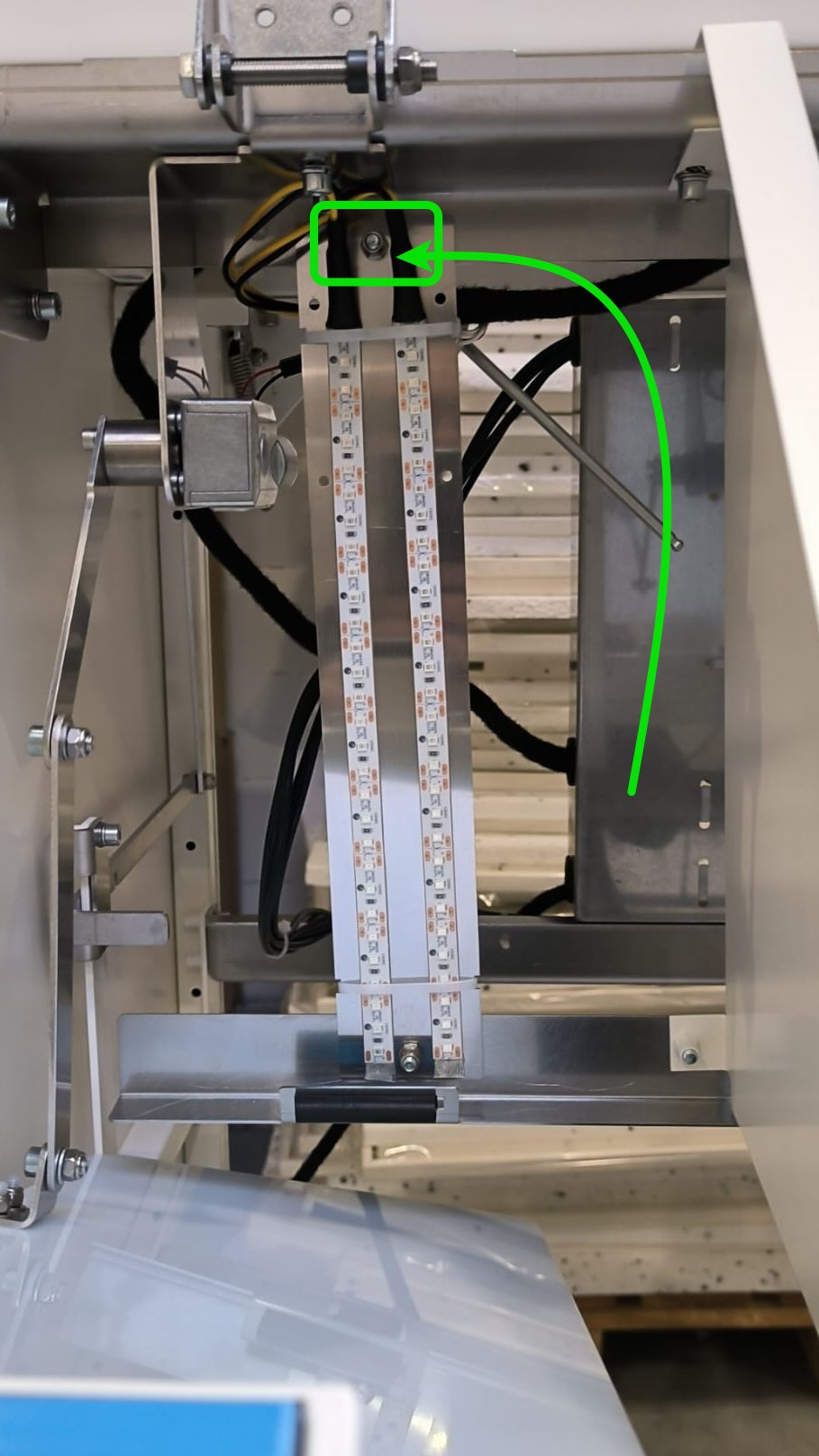

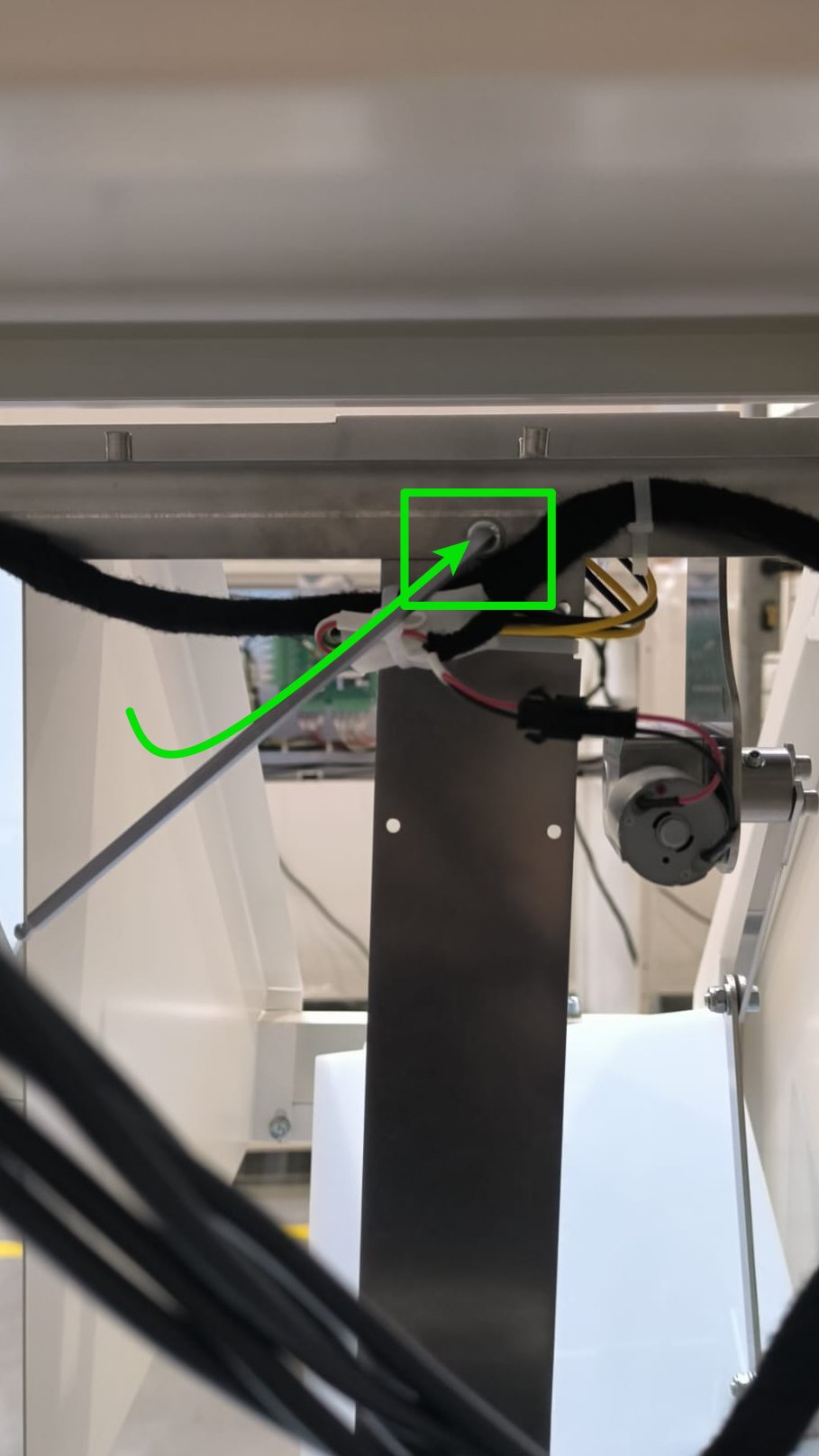

• Depending on the hardware version, the bolt may be from the front or rear

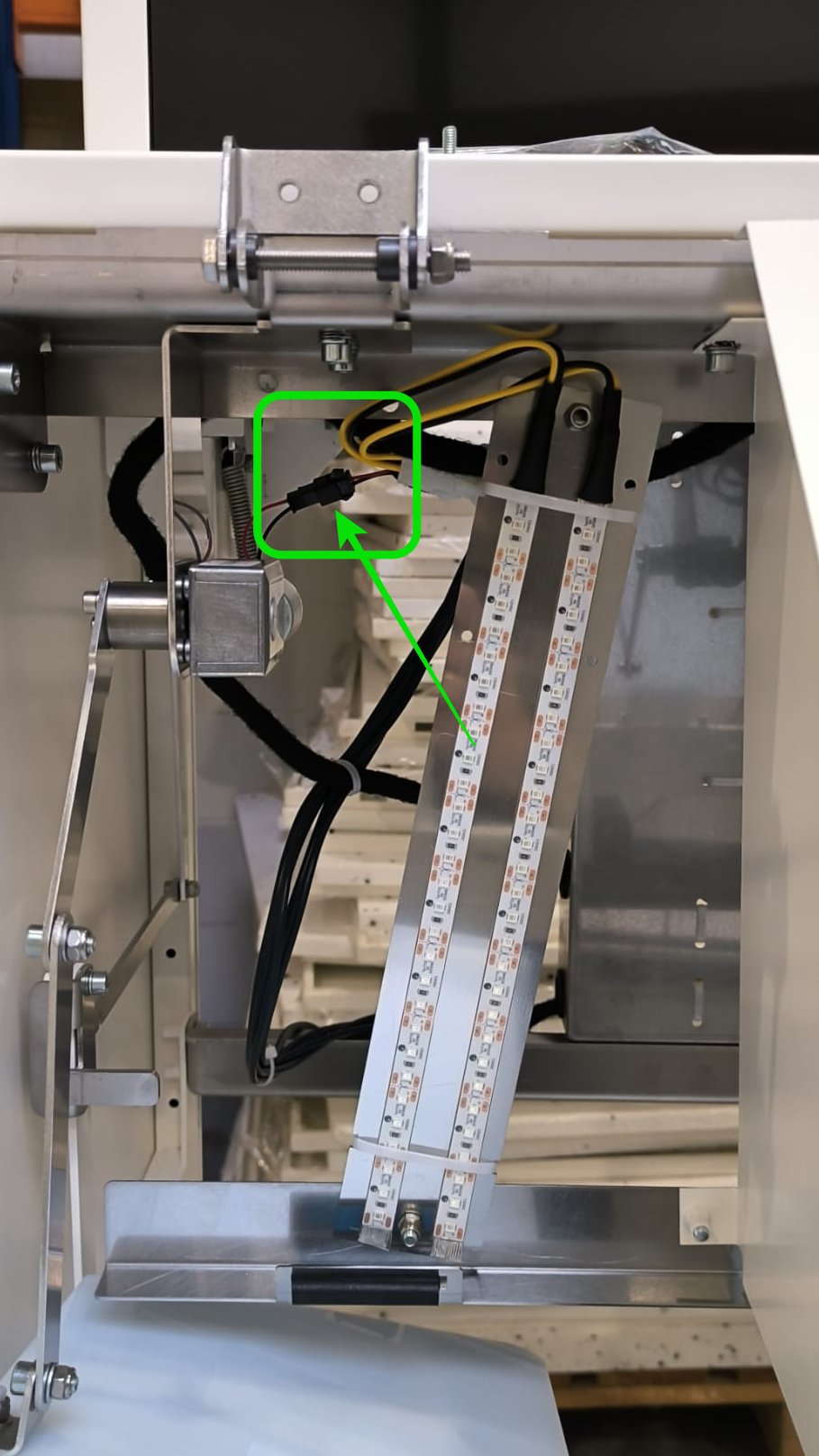

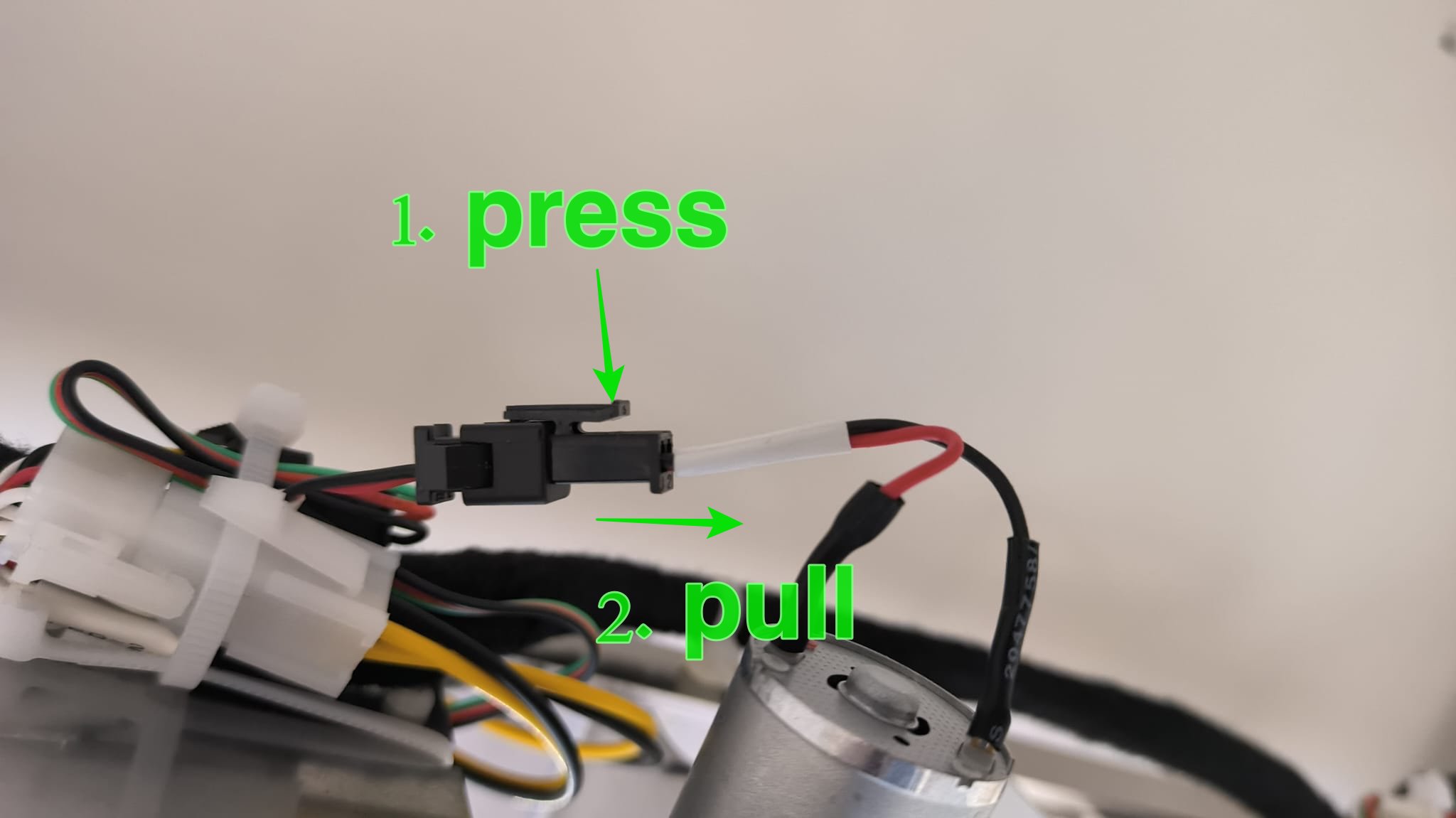

• there is only one two-pin plug with a red and black cable

Never pull the cables, only the plastic connector!

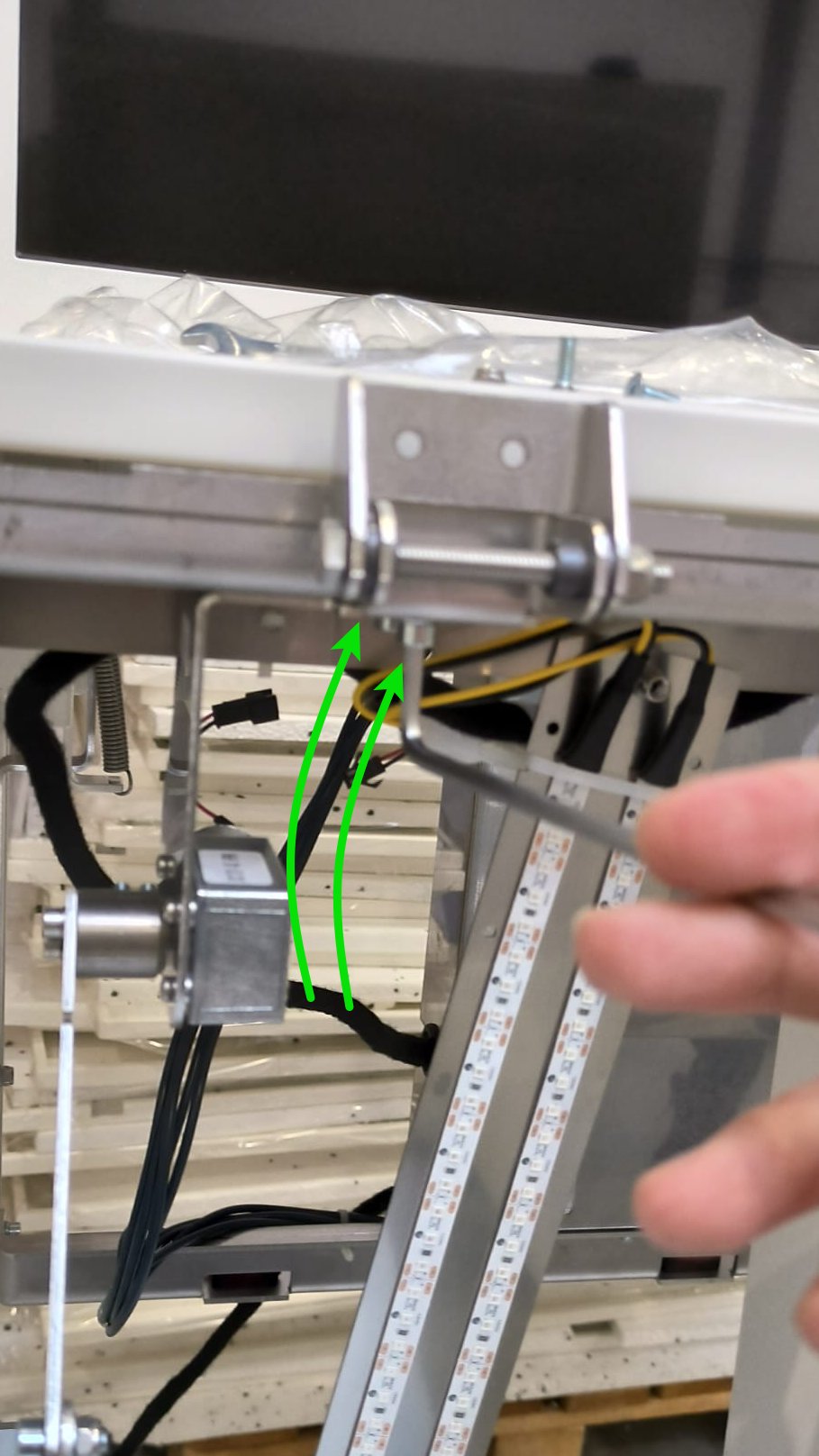

• there are two Allen screws holding the entire mechanism

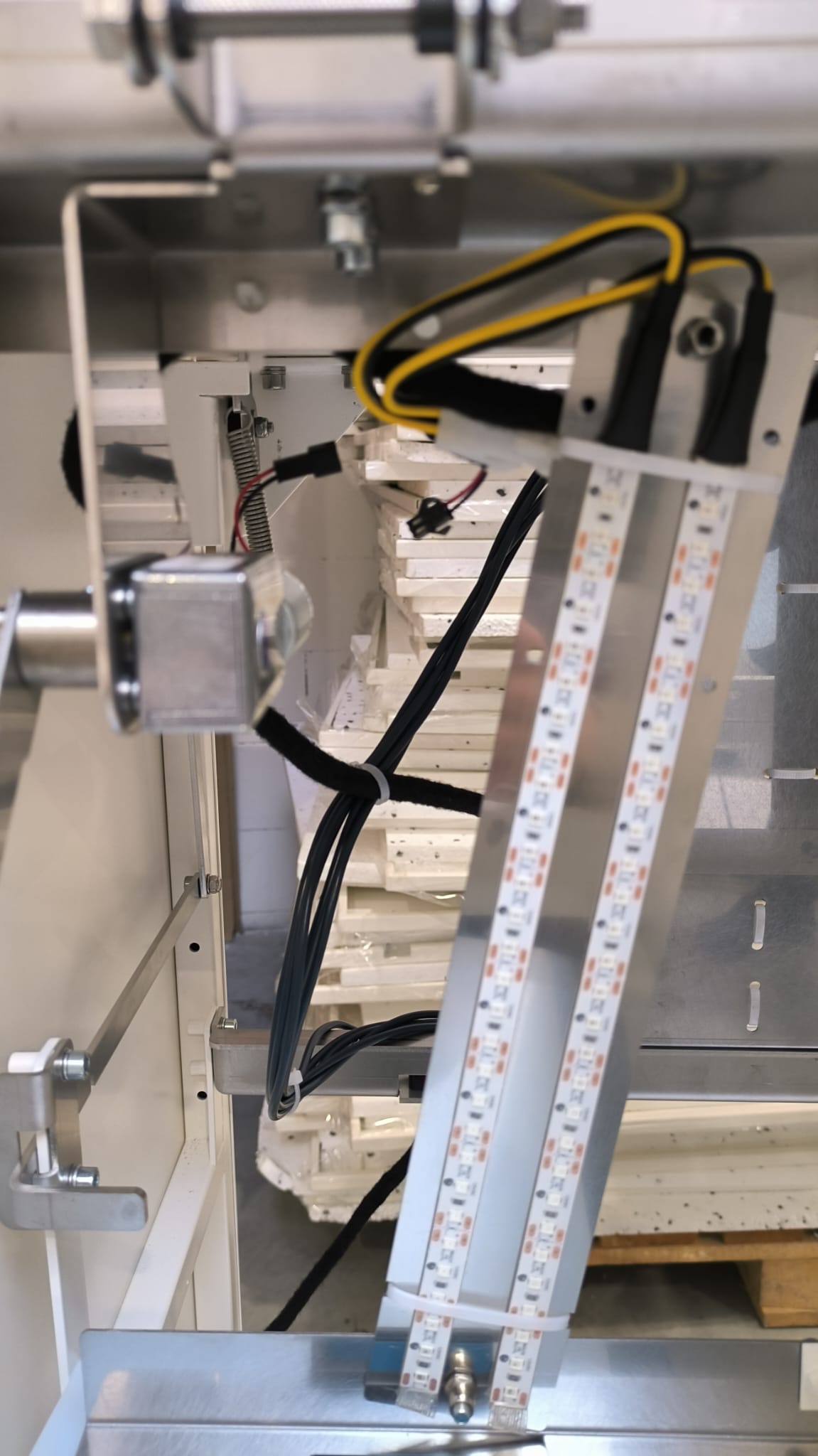

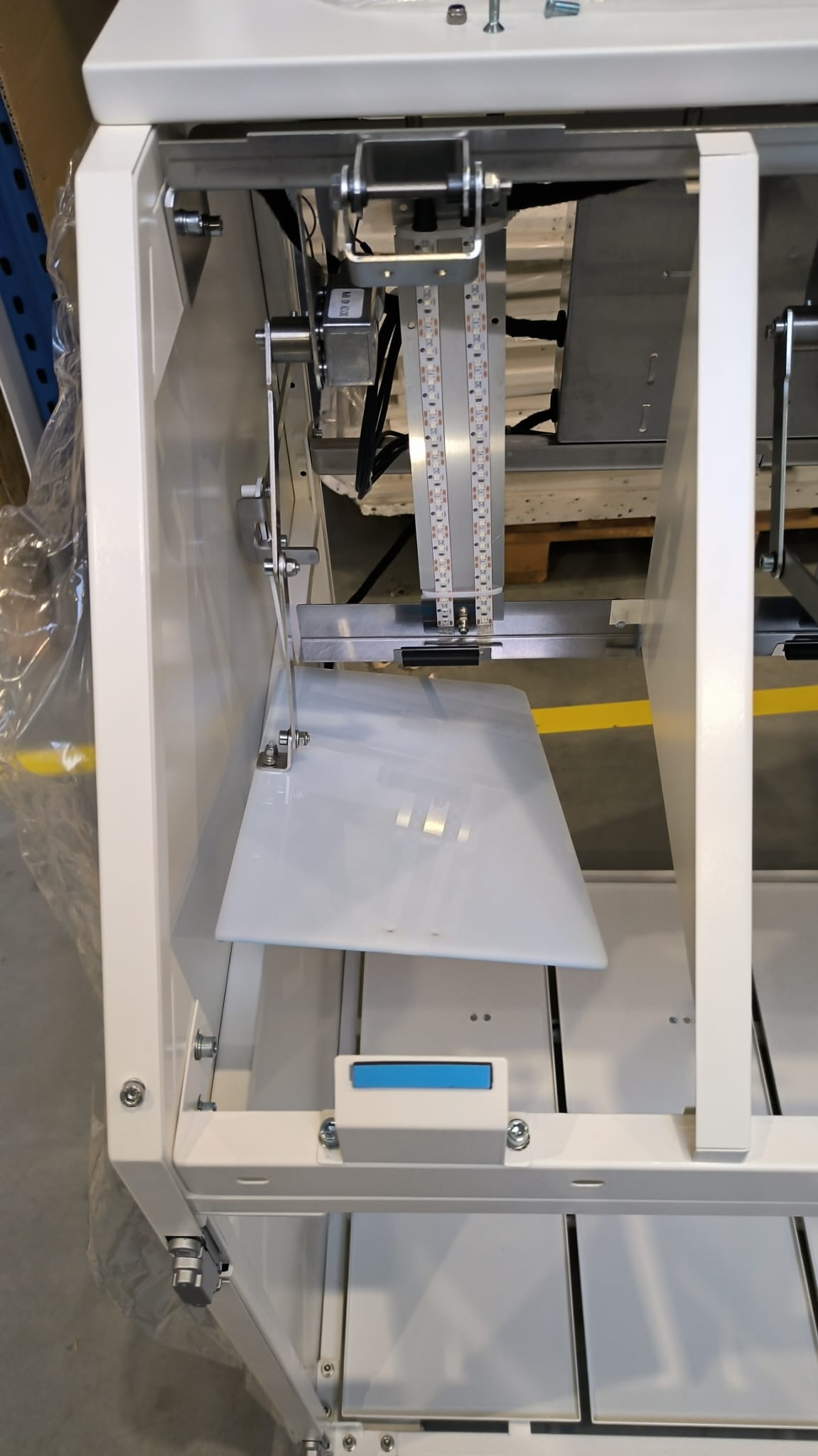

• when installing the new mechanism, make sure that the parts fit together as in the photo
